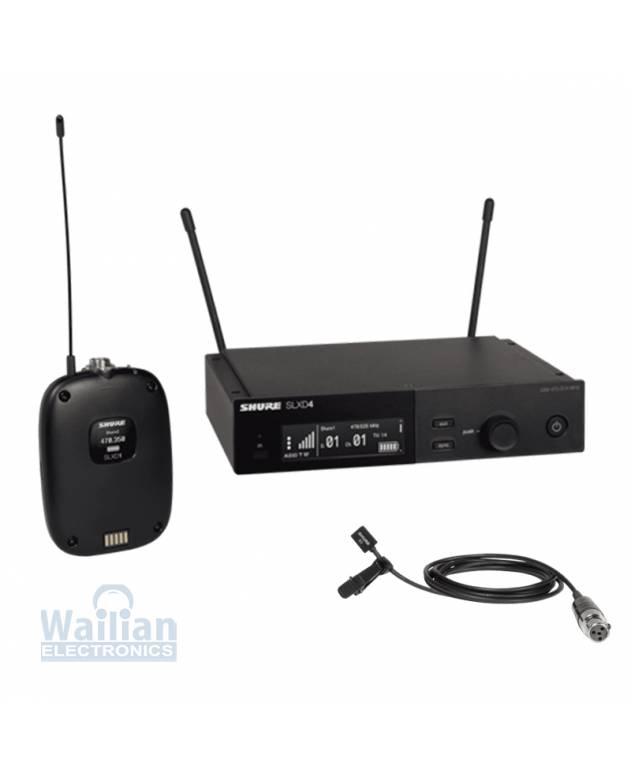

Shure SLXD14/93 Digital Wireless Lavalier Microphone System with WL93
- $1,054.13
($1,149.00 incl GST)
Featuring the WL93 Miniature Omnidirectional Lavalier Microphone and the SLXD1 transmitter, the SLXD14/93 provides transparent digital audio and rock-solid RF stability for lecture halls and live performances.
Out of Stock
Product is unavailable. Notify me when product is available
The SLXD14/93 Wireless System delivers transparent, 24-bit digital audio and rock-solid RF performance for a wide range of applications, from day-long presentations to nighttime performances. Operate up to 32 compatible systems per 44 MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required.
Ships with SLXD4 single-channel receiver, SLXD1 bodypack transmitters and WL93 Miniature Omnidirectional Lavalier Microphone with antenna and rackmount accessories and 2 AA batteries.
FEATURES:
- Transparent 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 120 dB dynamic range
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over IR scan and sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
- Interchangeable microphone capsules
- Rugged metal construction
SLXD4 SPECIFICATIONS
- Dimensions (H × W × D): 1.65 × 7.76 × 5.98 in (42 × 197 × 152 mm)
- Weight: 1.8 lb (816 g) without antennas
- Housing: Galvanized Steel
- Power Requirements: 15 VDC @ 600 mA, Supplied by external power supply
RF INPUT
- Spurious Rejection: >75 dB Typical
- Connector Type: BNC
- Impedance: 50 Ω
AUDIO OUTPUT
- Gain Adjustment Range: –18 to +42 dB in 1 dB steps
- Configuration:
- 1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio –, Sleeve=ground)
- XLR: Balanced (1=ground, 2=audio +, 3=audio –)
- Impedance:
- 1/4" (6.35 mm): 1.3 kΩ (670 Ω Unbalanced)
- XLR (line): 400 Ω (200 Ω Unbalanced)
- XLR (mic): 150 Ω
- Full Scale Output:
- 1/4" (6.35 mm): +15 dBV differentially (+9 dBV single)
- XLR (LINE setting): +15 dBV
- XLR (MIC setting): –15 dBV
- Mic/Line Switch: 30 dB pad
- Phantom Power Protection:
- 1/4" (6.35 mm): Yes
- XLR: Yes
NETWORKING
- Network Interface: Single Port Ethernet 10/100 Mbps
- Network Addressing Capability: DHCP or Manual IP address
- Maximum Cable Length 100 m (328 ft)
SLXD1 SPECIFICATIONS
- Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
- Dimensions (H × W × D): 3.86 × 2.68 × 1.0 in (98 × 68 × 25.5 mm)
- Weight: 3.1 oz (89 g)
- Housing: PC/ABS
AUDIO INPUT
- Connector: 4-Pin male mini connector (TA4M)
- Configuration: Unbalanced
- Impedance: 1 MΩ
- Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
- Preamplifier Equivalent Input Noise (EIN): –118 dBV
RF OUTPUT
- Antenna Type: 1/4 Wave
- Occupied Bandwidth: <200 kHz
- Modulation Type: Shure Propietary Digital
- Power: 1 mW/10 mW
- Varies by region.
- See Frequency Range and Output Power Table
Includes SLXD4 single-channel receiver, SLXD1 bodypack transmitters and WL93 Miniature Omnidirectional Lavalier Microphone with antenna and rackmount accessories and 2 AA batteries.
2 Years
