Soundtechnic WD239U Dual Channel Wireless Handheld Microphone System

  • $898.17

($979.00 incl GST)

IMDA APPROVED

Out of Stock

Product is unavailable. Notify me when product is available

Experience crystal-clear sound and seamless mobility with this Soundtechnic WD239U Dual Channel Wireless Handheld Microphone System, designed for high-performance live sound, public speaking, events, karaoke, and worship settings. This system delivers exceptional audio quality, reliable signal transmission, and user-friendly operation—all in a sleek, durable design.





FEATURES:



  • Dual Channel UHF Transmission: Operates on ultra-high frequency (UHF) bands to minimize interference and ensure stable, long-range wireless communication. Each microphone operates independently with selectable frequencies for versatile use.

  • High-Fidelity Audio: Equipped with high-sensitivity directional dynamic capsules, the system provides clear, natural vocal reproduction with minimal distortion and background noise.

  • Extended Wireless Range: Offers an operational range of up to 100 feet (line-of-sight), perfect for large venues, outdoor events, or multi-room coverage.

  • Rugged Construction: Both microphones are built with reinforced metal mesh grilles and ergonomic handles for durability and comfort during long performances.

  • LED Display: Both the receiver and microphones feature backlit LED screens that display real-time frequency, battery level, and signal strength for easy monitoring.

  • Plug-and-Play Setup: The system includes a dual-channel receiver with balanced XLR and unbalanced 1/4" outputs for flexible connectivity to mixers, speakers, or amplifiers. Simply power on, sync, and perform.

  • Battery Powered: Microphones operate on standard AA batteries (or optional rechargeable units).





Applications:



  • Professional vocal performances

  • Conferences and corporate events

  • Houses of worship

  • Wedding DJs and MCs

  • School assemblies and stage productions

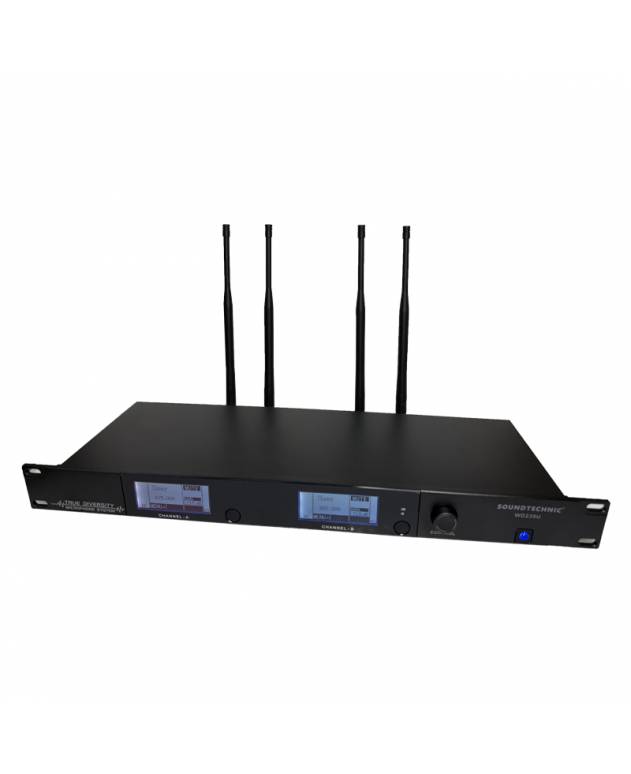

WD239R Receiver

Receiver principle True diversity dual channel receiver
Frequency range 645.250-685.050 MHz
Receiving frequencies Max. 2000 receiving frequencies
Frequency bandwidth 50 MHz
Sensitivity < 3 μV at 52 dB (A) rms S/N
Signal-to-noise Ratio (S/N) > 95dB
Adjacent channel selection Typically ≥ 60 dB
Blocking > +10dB
Squelch 3 levels (low: 5 dBμV, mid: 15 dBμV, high: 25 dBμV)
Total Harmonic Distortion (THD): <0.2%@1KHz
Maximum audio output +5 dB
AF output voltage 6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
Antenna 4 BNC Half Wave Antenna
Power supply 12-18V DC/1A

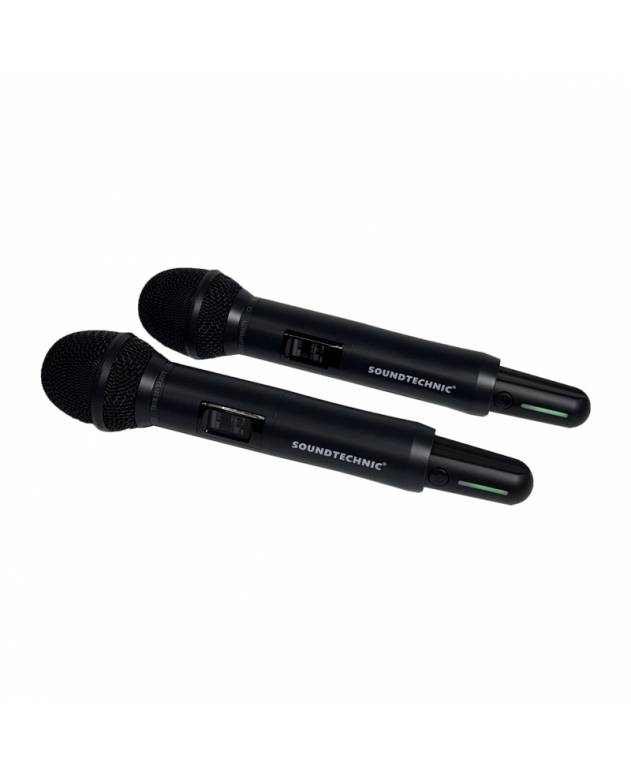

WD239HT Handheld Transmitter

Frequency range 645.250-685.050 MHz
Switching bandwidth up to 100 MHz
Output power 10mW
AF frequency response 80 – 18,000 Hz
Transducer principle dynamic, cardioid
Sensitivity 0 to -30 dB, adjustable in 10- dB steps
Nominal/peak deviation ± 24 kHz / ± 48 kHz
Power supply AA batteries, 1.5 V
Nominal voltage 3 V battery / 2.4 V rechargeable battery
Operating time Typically 8h (AA Alkaline)
Housing Material Metal Housing



  • 1 True Diversity Dual Channel Receiver
  • 2 Handheld Microphone
  • 4 Antenna Rod
  • 1 Output Cable with 1/4" Jack to 1/4" Jack
  • 1 Power Supply
  • 1 User Manual

1 Year
