Bose Panaray 402 Series V Installed Sound Reinforcement Loudspeaker (Piece)
($1,079.00 incl GST)
402 Series V | Series V

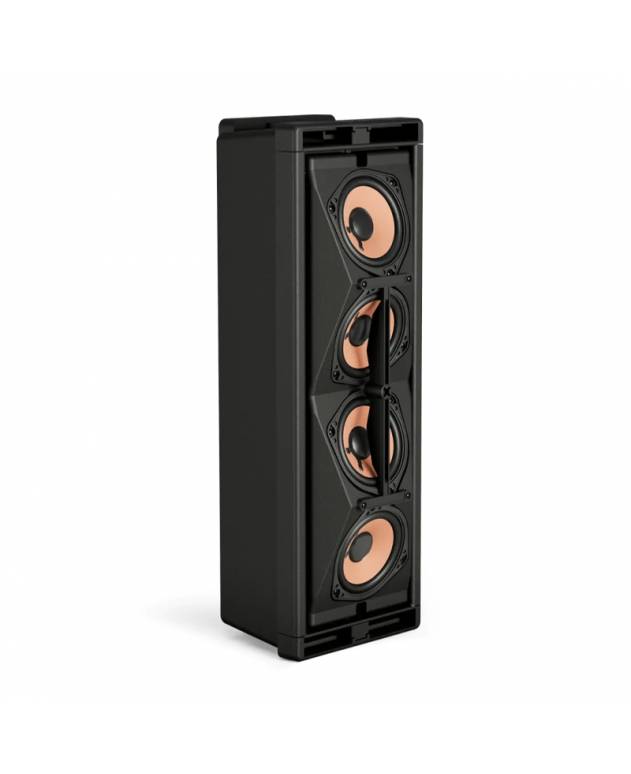

One of the best-selling sound reinforcement loudspeakers of all time returns. The Bose Professional 402 Series V features four 4.5” full-range drivers that deliver smooth frequency response, wide dispersion, and exceptional power handling and efficiency. The proprietary array design ensures a wide 120° × 60° coverage pattern, reducing the need for multiple loudspeakers, while the 73 Hz low-frequency range can eliminate the need for subwoofers.
The rugged, lightweight enclosure is IP55 weather-rated for durability in indoor and outdoor installations, and flexible mounting options allow for easy, secure installations in various configurations.

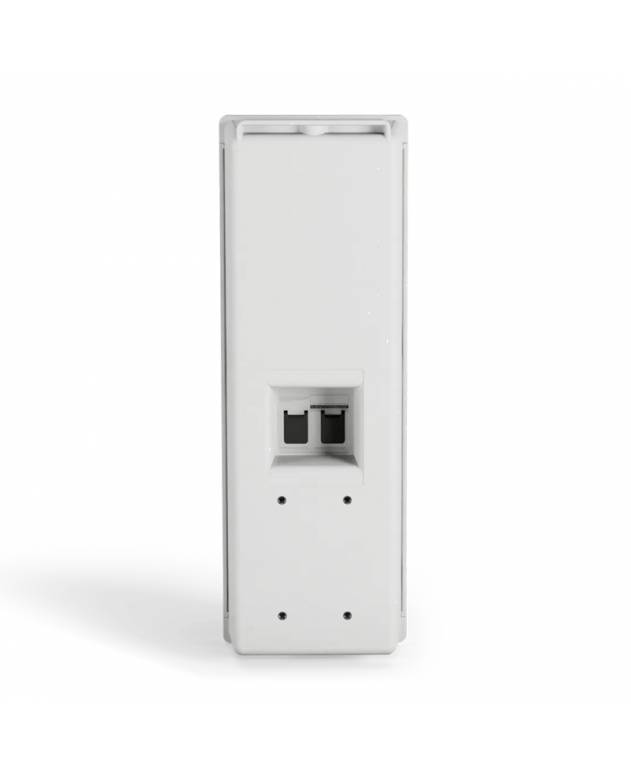

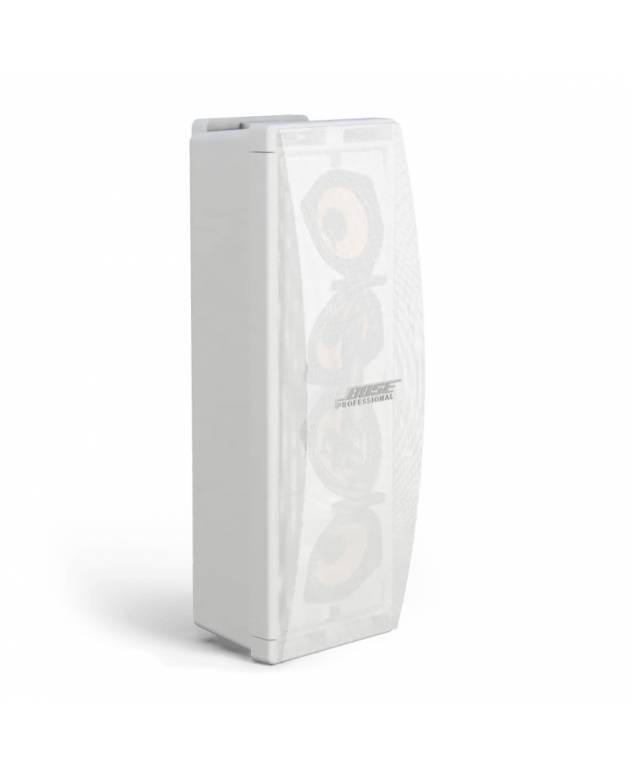

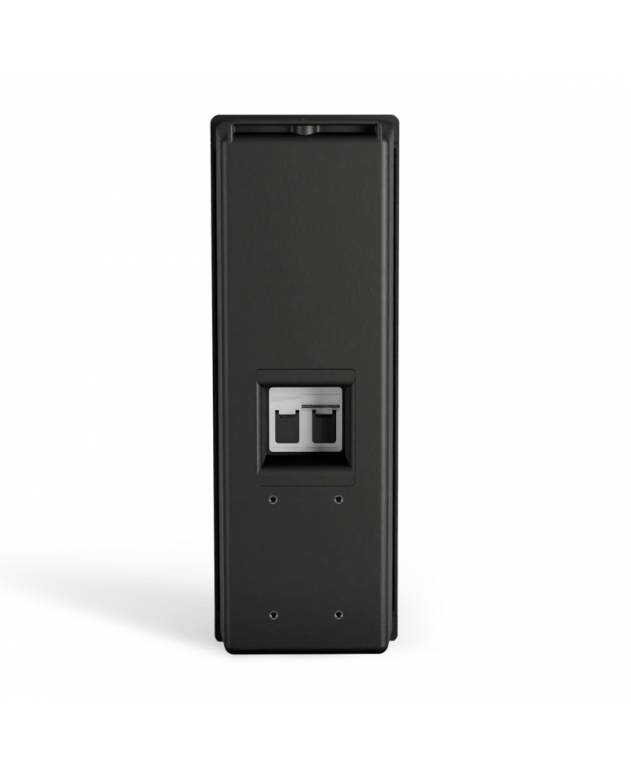

Available in black and white, the 402 Series V is compatible with the surface-mount pan and tilt bracket for mounting in a variety of spaces.
*This product is only sold in specific regions
FEATURES
- Four 4.5” full-range drivers deliver smooth frequency response, wide dispersion, and exceptional power handling and efficiency
- Proprietary array design ensures a wide 120° × 60° coverage pattern, reducing the need for multiple loudspeakers
- 73 Hz–15 kHz frequency range provides full-range audio without the need for subwoofers at moderate sound levels
- High 119 dB peak SPL capacity means powerful sound reinforcement in demanding environments
- Rugged, lightweight enclosure is IP55 weather-rated for durability in indoor and outdoor installations
- Flexible mounting options including threaded inserts for easy, secure installations in various configurations
Applications
Designed for a wide range of applications, including:
- Hospitality
- Retail / restaurants
- Corporate
- Houses of worship
- Performing arts
- Education
PHYSICAL
-
Colors
-
Black
-
-
Colors
-
White
-
-
Enclosure Material
-
Mineral-reinforced HDPE
-
-
Environmental
-
Outdoors or indoors, IP55
-
-
Grille
-
Perforated steel, powder-coated finish
-
-
Suspension/Mounting
-
(7) M8 threaded inserts (4 back, 1 bottom, 2 top)
-
-
Product Dimensions (H×W×D)
-
591 mm × 206 mm × 202 mm (23.3 in × 8.1 in × 8.0 in)
-
-
Net Weight
-
6.9 kg (15.2 lb)
-
-
Shipping Weight
-
8.4 kg (18.5 lb)
-
PERFORMANCE
-
Frequency Range (-10 dB)
-
73 Hz – 15,000 Hz
-
-
Calculated Maximum SPL @ 1 m
-
112 dB
-
-
Power Handling, long-term continuous
-
120 W
-
-
Sensitivity (SPL/1 W at 1 m)
-
91 dB
-
-
Coverage, Horizontal
-
120°
-
-
Nominal Impedance
-
8 Ω
-
-
Power Handling, Peak
-
480 W
-
-
Coverage, Vertical
-
60°
-
-
(1) 402 Series V
-
(1) installation guide
5 Years
