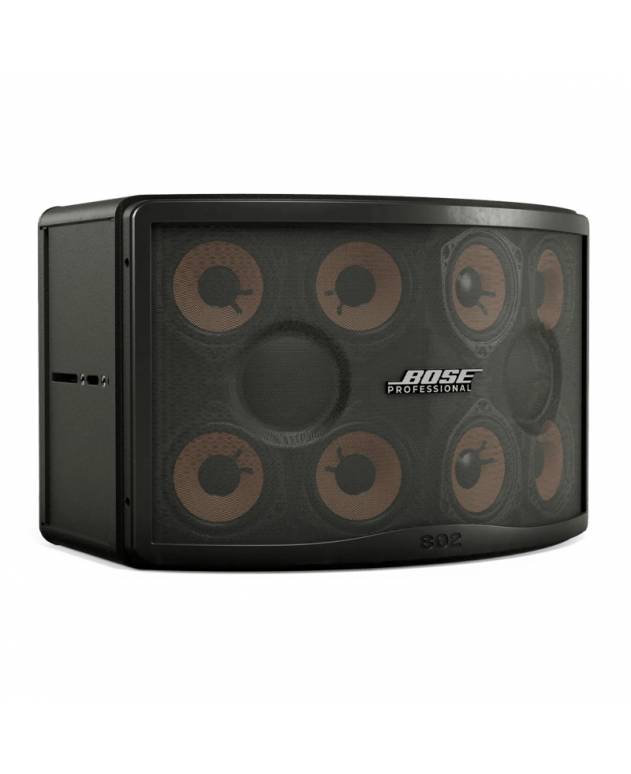

Bose Panaray 802 Series V Installed Sound Reinforcement Loudspeaker, Black (Piece)

($1,799.00 incl GST)

802 Series V | Series V

One of the best-selling sound reinforcement loudspeakers of all time returns. The Bose Professional 802 Series V features eight 4.5” full-range drivers that deliver smooth frequency response, wide dispersion, and exceptional power handling and efficiency. The proprietary array design ensures a wide 120° × 100° coverage pattern, reducing the need for multiple loudspeakers, while the 52 Hz low-frequency range can eliminate the need for subwoofers.



The rugged, lightweight enclosure is IP55 weather-rated for durability in indoor and outdoor installations, and flexible mounting options allow for easy, secure installations in various configurations.

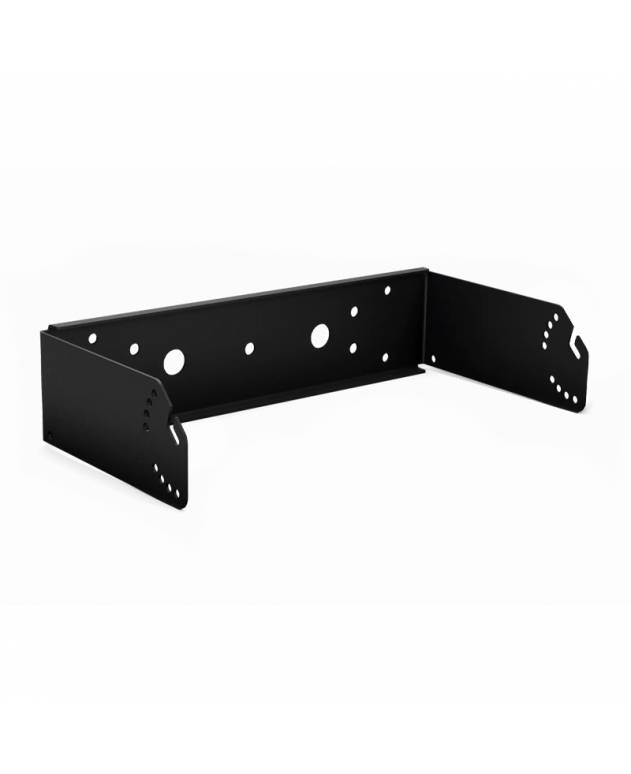

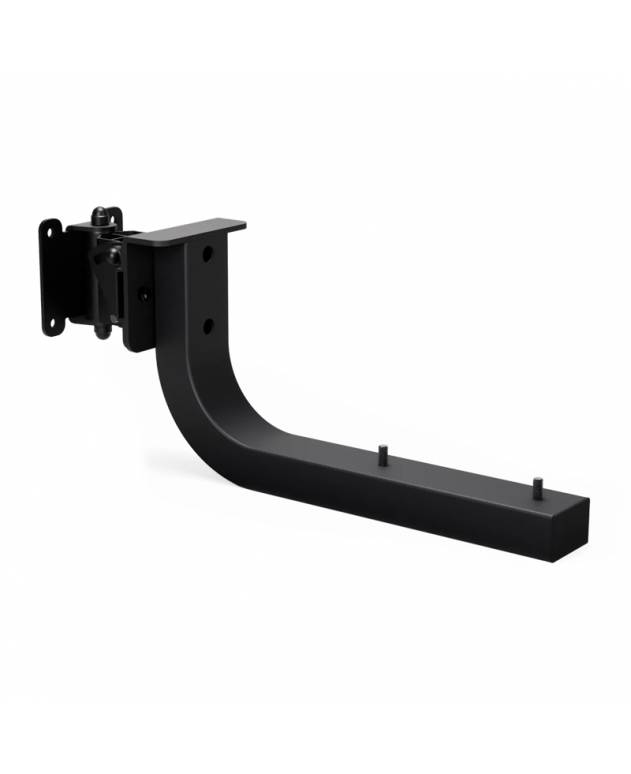

Available in black, 802 Series V is compatible with the 802 U-Bracket and WBP-8 wall-mount adapter.



*This product is only sold in specific regions







FEATURES

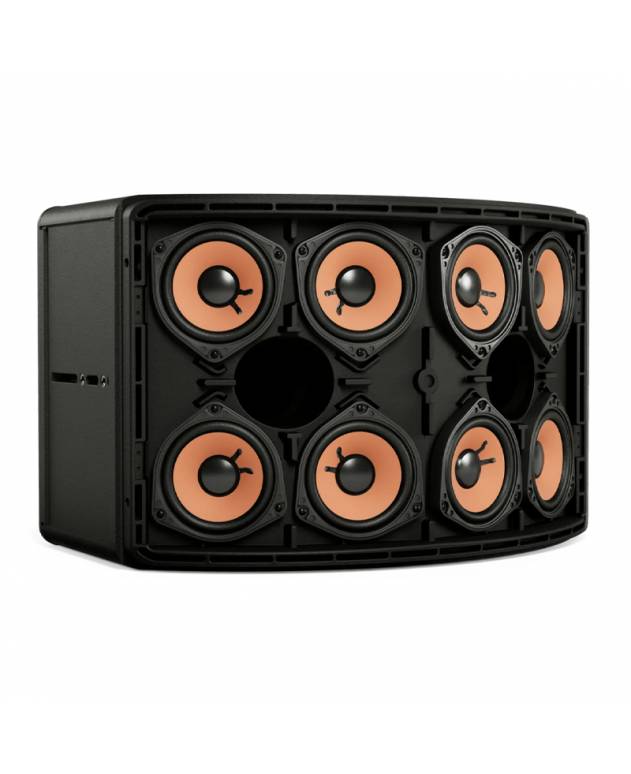

  • Eight 4.5-inch full-range drivers deliver smooth frequency response, wide dispersion, and exceptional power handling and efficiency
  • Proprietary array design ensures a wide 120° × 100° coverage pattern, reducing the need for multiple loudspeakers
  • 52 Hz – 15 kHz frequency range provides full-range audio without the need for subwoofers at moderate sound levels
  • High 123 dB peak SPL capacity means powerful sound reinforcement in demanding environments
  • Rugged, lightweight enclosure is IP55 weather-rated for durability in indoor and outdoor installations
  • Flexible mounting options including threaded inserts for easy, secure installations in various configurations





Applications



Designed for a wide range of applications, including:

  • Hospitality
  • Retail / restaurants
  • Corporate
  • Houses of worship
  • Performing arts
  • Education





PHYSICAL



  • Colors

    • Black

  • Enclosure Material

    • Mineral-reinforced HDPE

  • Environmental

    • Outdoors or indoors, IP55

  • Grille

    • Perforated steel, powder-coated finish

  • Suspension/Mounting

    • (8) M8 threaded inserts (2 back, 2 bottom, 4 sides)

  • Product Dimensions (H×W×D)

    • 334 mm × 523 mm × 318 mm (13.1 in × 20.5 in × 12.5 in)

  • Net Weight

    • 16.7 kg (36.8 lb)

  • Shipping Weight

    • 19.3 kg (42.5 lb)





PERFORMANCE



  • Frequency Range (-10 dB)

    • 52 Hz – 15,000 Hz

  • Calculated Maximum SPL @ 1 m

    • 116 dB

  • Power Handling, long-term continuous

    • 240 W

  • Sensitivity (SPL/1 W at 1 m)

    • 92 dB

  • Coverage, Horizontal

    • 120°

  • Nominal Impedance

    • 8 Ω

  • Power Handling, Peak

    • 960 W

  • Coverage, Vertical

    • 100°



  • (1) 802 Series V

  • (1) installation guide

5 Years
